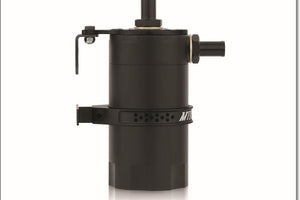

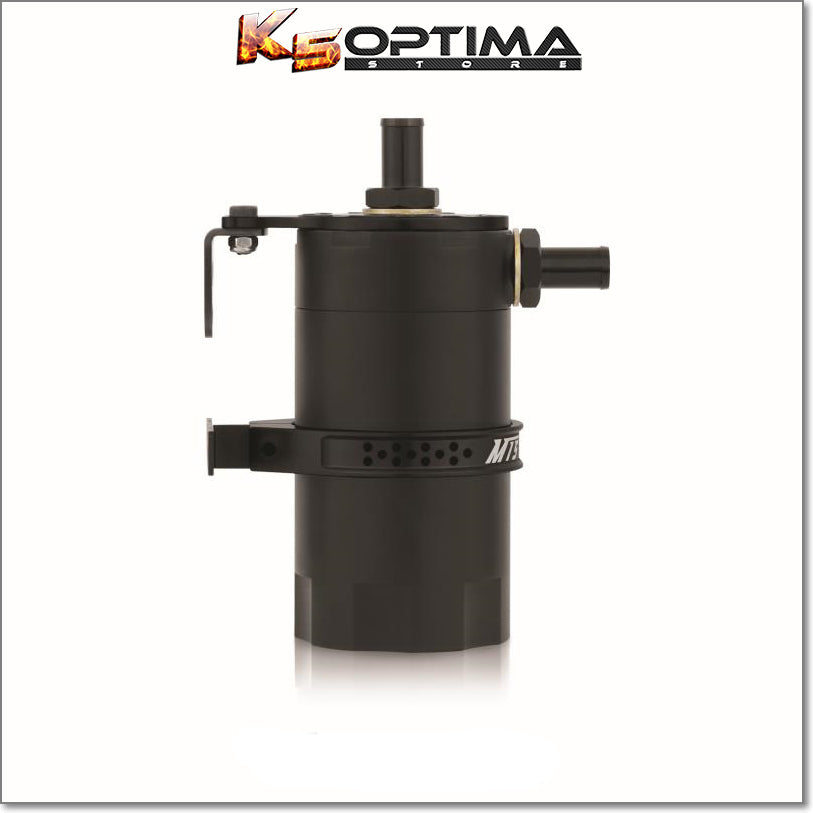

Mishimoto Baffled Oil Catch Can

$299.95 USD

Mishimoto Baffled Oil Catch Can

$299.95 USD

FREE SHIPPING WITHIN THE CONTINENTAL US!



Description:

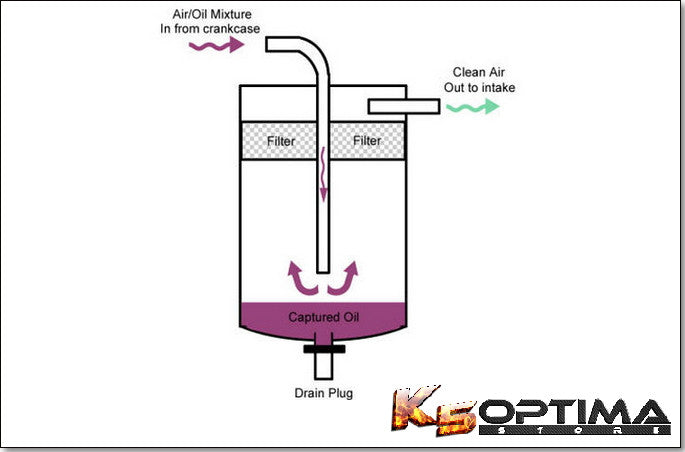

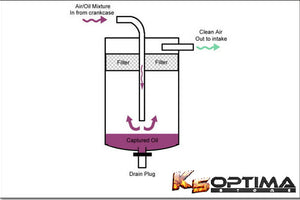

  • Mishimoto is proud to announce the release of our Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your Stinger's intake. Custom grooves in the catch can's inlet turbulates the air longer to ensure all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake
  • The 100% billet, 6061 aluminum can accepts -AN fittings at the inlet, outlet, and drain area allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for -AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system
  • Mishimoto catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, these catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while Mishimoto catch cans trap the blow-by and keep it out of the engine permanently

Please note, this is a universal catch can, not made specifically for the Kia Optima


Features & Specifications:

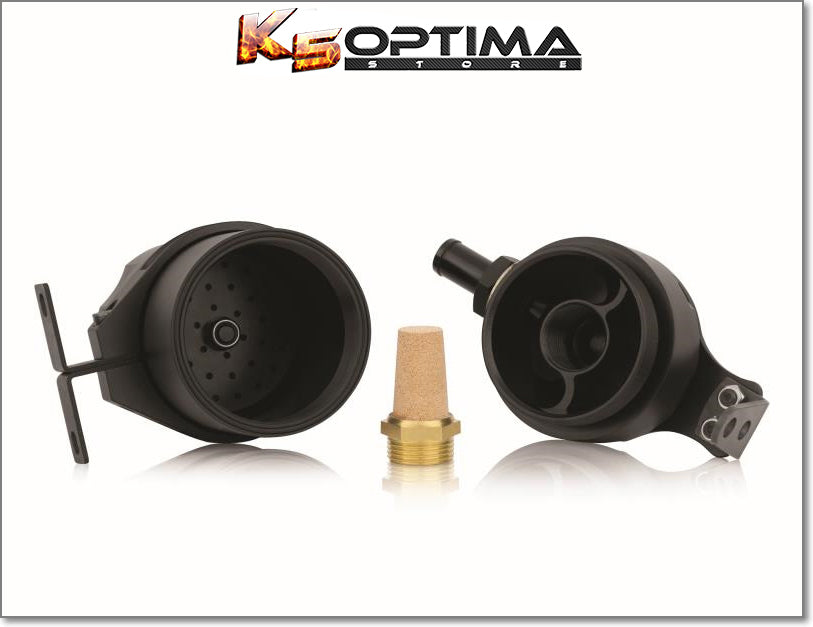

  • 40-micron bronze filter blocks oil from depositing in ventilation system
  • Special engineered inlet pattern "turbulates" air longer, allowing oil to condense
  • Internal baffle ensures no oil escapes during high-speed cornering

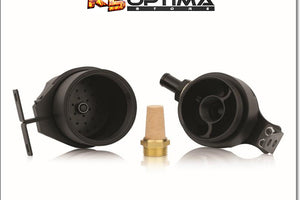

  • Replaceable single-unit filter is easy to maintain
  • Inlet and outlet accept -AN fittings for various configurations
  • 100% billet anodized 6061 aluminum with laser-etched finish
  • Safe to use in pressurized systems
  • Drain plug can be removed to allow for -AN return to oil pan

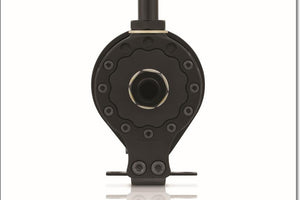

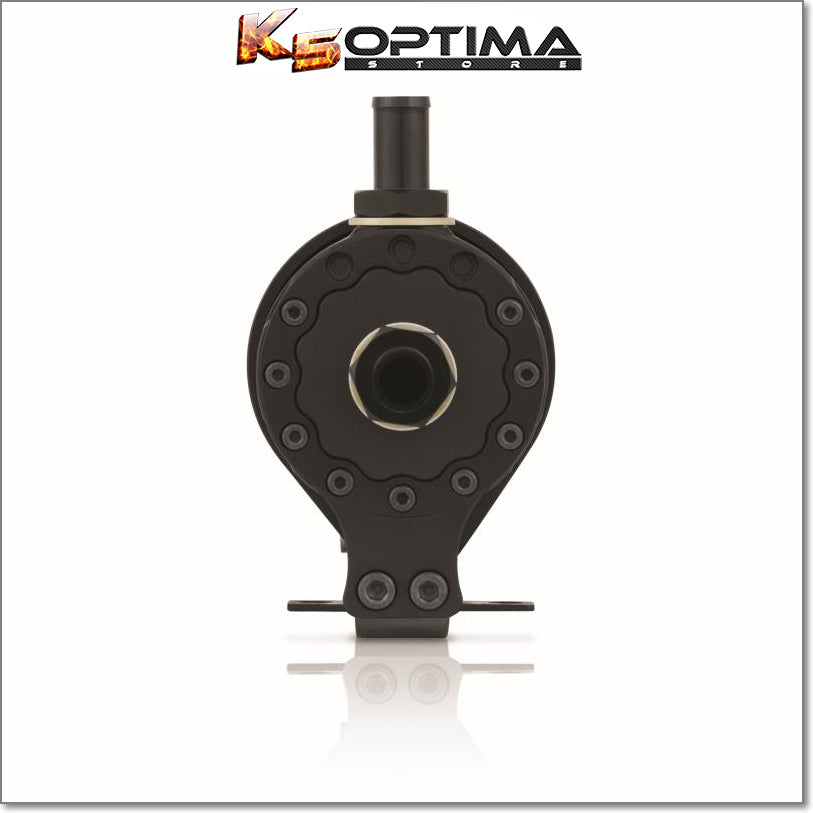

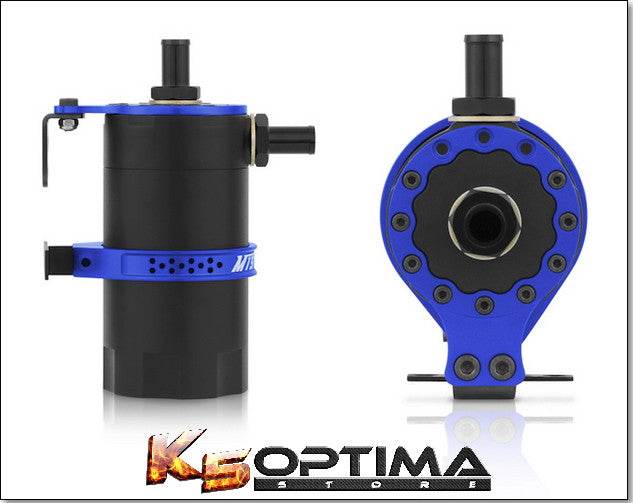

  • Unique upper mounting bracket cogs provide versatile mounting options

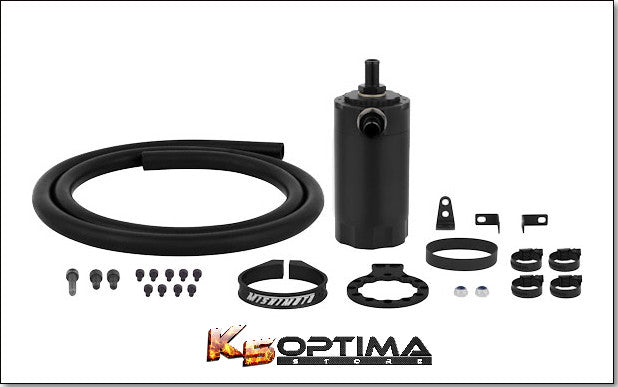

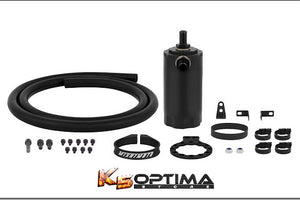

  • Includes push-on fittings for easy installation
  • The Mishimoto Baffled Oil Catch Can is offered in a variety of colors
  • Mishimoto Lifetime Warranty​

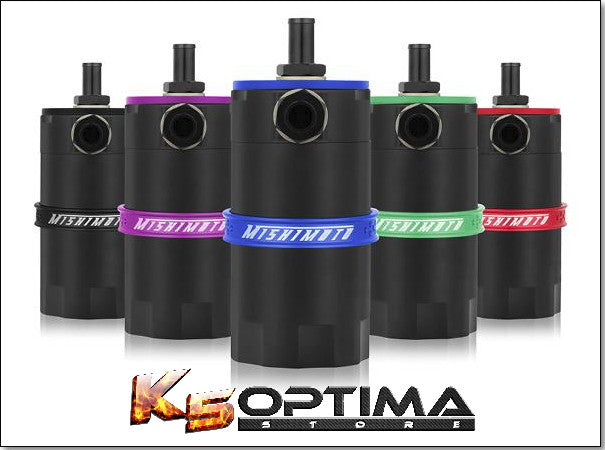

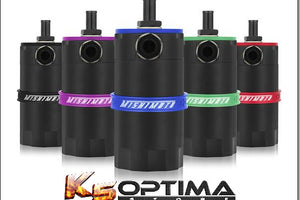

Available Color Options:

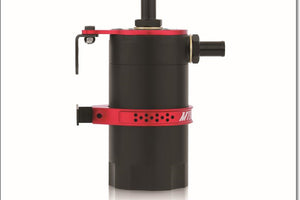

  • Red
  • Black

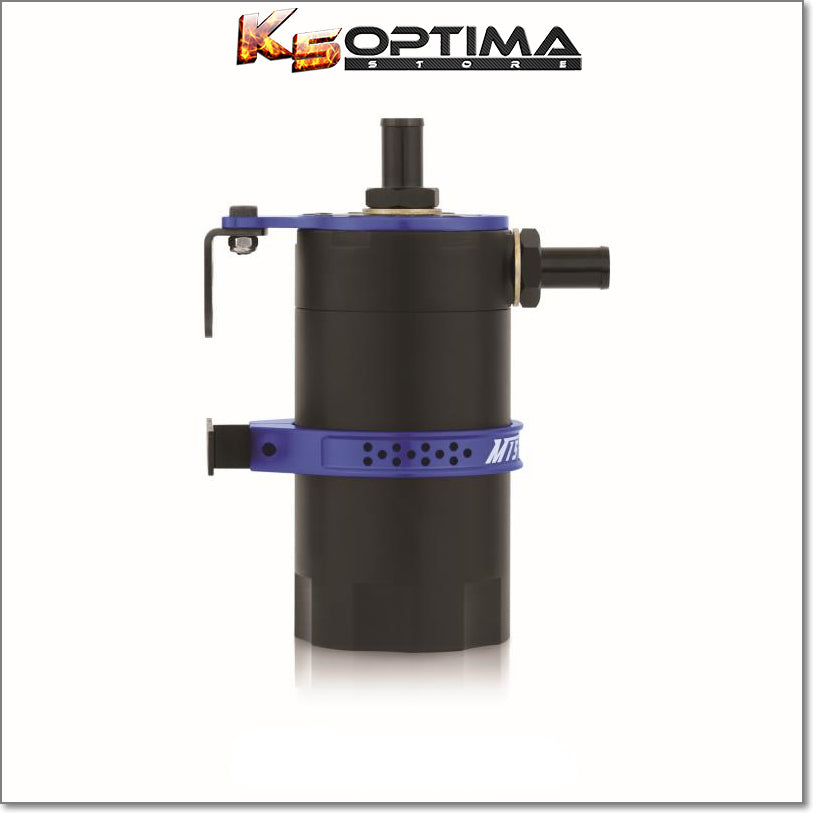

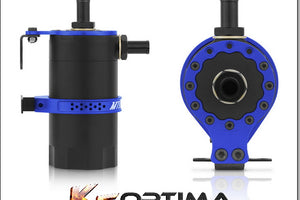

  • Blue

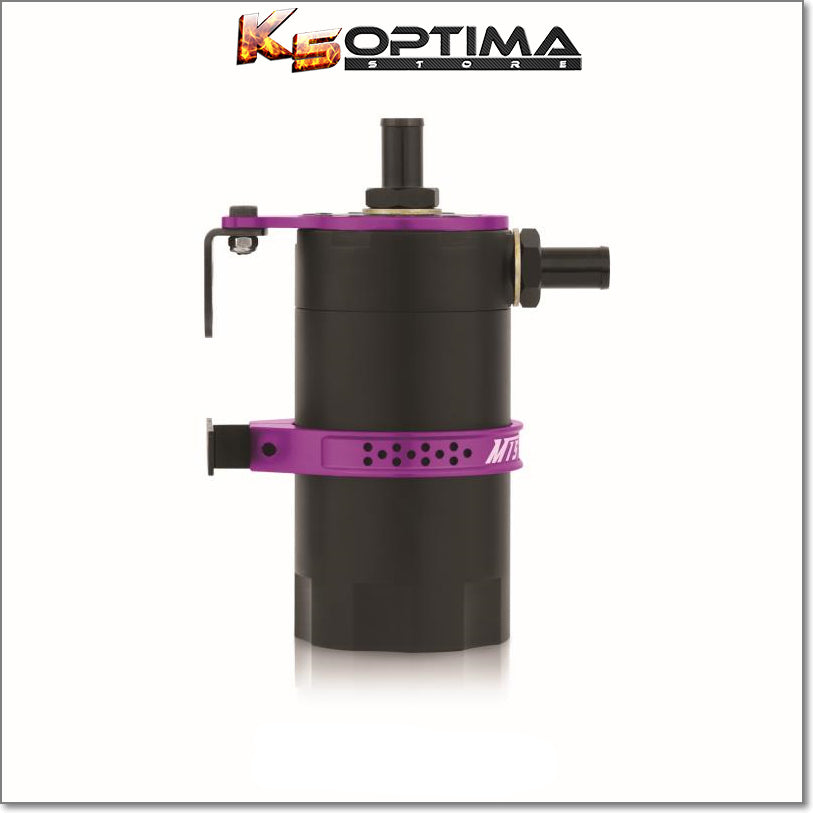

  • Purple

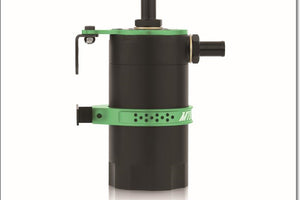

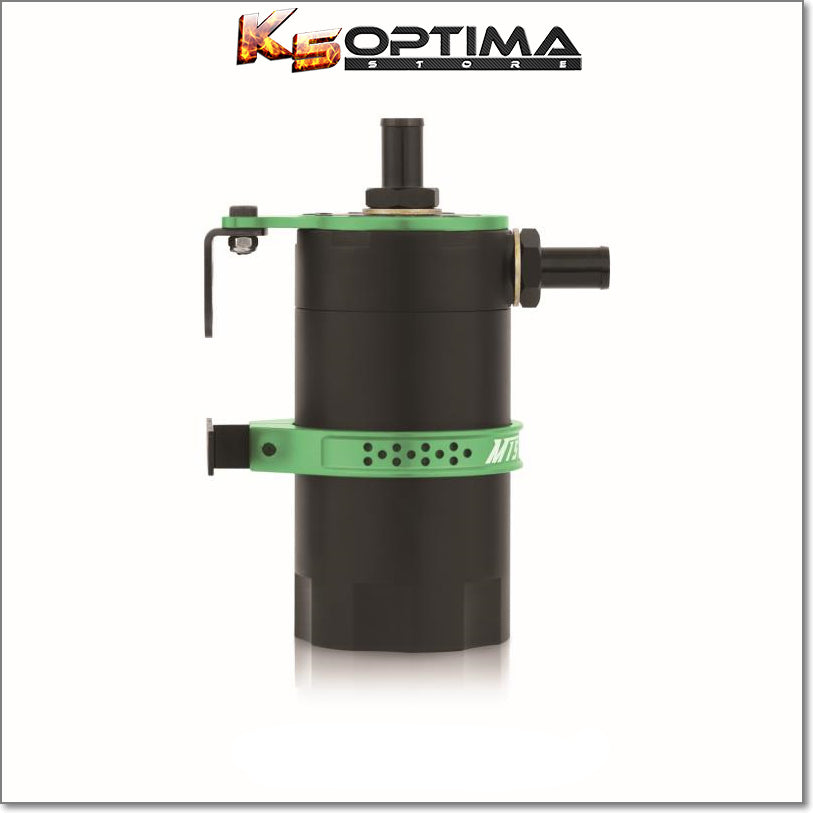

  • Green

Video Demonstration
